Name: Acb cradle contact
Brand: SANGHI YANTRA UDYOG
Price: 800 INR
Availability: InStock

Product Details:

Mechanical Life >10,000 operations
Contact Resistance 1 m
Dielectiric Strength 2500V AC for 1 min
Ambient Temperature -10C to +50C
Contact Material Copper/Brass with Plating
Working Temperature -10C to +50C
Contact Form Flat Plate Terminal
Share Your Product:

800 INR/Piece

Get a Price/Quote

Request To Call Back Send Inquiry

Acb cradle contact Price And Quantity

Price 800 INR/Piece
Minimum Order Quantity 1 Piece

Acb cradle contact Product Specifications

Rated Voltage 690V AC
Contact Form Flat Plate Terminal
Protect Feature High Dielectric Strength, Flame Retardant
Working Temperature -10C to +50C
Insulation Resistance 1000 M at 500V DC
Contact Load Suitable for 2000A ACB
Mechanical Life >10,000 operations
Contact Resistance 1 m
Terminal Type Screw Terminals
Weight Approx. 350g
Supply Terminal Cradle/Panel Mount
Theory Electrical Contact/Support Component
Usage Air Circuit Breaker (ACB) Cradle Contact, Terminal Support
Dielectiric Strength 2500V AC for 1 min
Dimension (L*W*H) Approx. 135mm x 100mm x 30mm
Product Type Cradle Terminal Support
Color White/Ivory
Ambient Temperature -10C to +50C
Contact Material Copper/Brass with Plating
Size Standard (For 2000A ACB)

Compatibility For 2000A ACB
Heat Resistance High, Suitable for Heavy Current Flow
Application LT Make ACB (Air Circuit Breaker) Spares
Mounting Type Direct Mounting in Cradle Support

Acb cradle contact Trade Information

Supply Ability 3500 Piece Per Week
Delivery Time 1 Days

Product Description

These Cradle Terminal Supports are best for L&T make Air circuit breaker.

We manufacture Cradle Terminal Support with high tensile DMC for great endurance .

SKYU	Cat No.
Cradle Terminal Support for 800 / 1000 C & 630 / 1250 S1	CS50086
Cradle Terminal Support for 800/1600H, 1250/1600C, 1600/2000S1 & 3200/4000H/H1/HO	CS50178
Cradle Terminal Support for 2000C	CS50085
Cradle Terminal Support for 2500/3200 S1, 2000H &2500 C/H	CS50128
Cradle Terminal Support for 3200D & 4000C	CS50093

Request
Callback

Additional Information:

Item Code: CS50
Production Capacity: 1000
Delivery Time: 24 Hours
Packaging Details: subject to customer requirement

Reliable Support for Heavy Current Applications

Designed with precision, this cradle contact provides effective terminal support for 2000A Air Circuit Breakers. Its robust insulation resistance of 1000 M at 500V DC and high dielectric strength ensure maximum safety and reliability in heavy-duty electrical systems. Ideally suited for panel or cradle mounting, it delivers consistent performance across a wide range of industrial applications.

Heat-Resistant and Durable Construction

Utilizing flame retardant materials and copper/brass with superior plating, this cradle contact withstands elevated currents and temperatures. With excellent mechanical endurance (over 10,000 cycles) and minimal contact resistance, it minimizes power losses even in challenging environments. Its compact standard sizing ensures straightforward integration within LT Make 2000A ACBs.

FAQ's of Acb cradle contact:

Q: How do I mount the ACB cradle contact in a 2000A Air Circuit Breaker?

A: The ACB cradle contact is designed for direct mounting in the cradle support of LT Make 2000A ACBs. Use the provided screw terminals to securely fasten it to the cradle or panel, ensuring stable and reliable connections during operation.

Q: What applications is this cradle contact suitable for?

A: This contact is ideal for use in Air Circuit Breaker (ACB) systems rated at 2000A, providing terminal support and safe electrical conduction in heavy current and high-voltage environments, such as industrial switchgear and power distribution panels.

Q: When should the ACB cradle contact be replaced?

A: Replacement is recommended if there are visible signs of wear, increased contact resistance, or after extensive use exceeding 10,000 operations, to maintain optimal performance and safety in your ACB system.

Q: Where can this cradle contact be installed?

A: It is specifically designed for installation in LT Make ACBs that are rated for 2000A, and can be mounted directly onto the cradle or panel, making it suitable for integration in switchboards, control panels, and other electrical enclosures.

Q: What is the process for ensuring safe operation of the cradle contact?

A: To ensure safe operation, confirm that all screw terminals are tightly secured, verify proper mounting alignment, and regularly inspect for signs of overheating or corrosion. Routine maintenance helps preserve its high insulation and dielectric properties.

Q: How does this cradle contact benefit high current electrical systems?

A: Thanks to its high heat resistance, low contact resistance, and flame-retardant construction, the cradle contact ensures reliable current transfer, minimizes power loss, and enhances the longevity and safety of your electrical system.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'old product' category

Contactor Spare Kits For Siemens Contactor Price : 100 INR/Piece Minimum Order Quantity : 100 Rated Voltage : Suitable for Siemens contactor voltage ratings (typically 230V/415V AC) Weight : Approx. 820 grams per piece (varies by kit) Dimension (L*W*H) : Depends on specific Siemens model Product Type : Contactor Spare Kits For Siemens Contactor Color : Metallic Silver Protection Level : IP54 Application : Industrial Working Temperature : 20C to 60C (recommended) Contact Form : Replacement contact kit typically Single Pole Protect Feature : Other, N/A (spare part only) Ambient Temperature : 20C to 60C (recommended) Contact Material : Silver Alloy (typical for Siemens contacts) Operate Time : N/A (Mechanical spare part) Terminal Type : Other, Compatible with Siemens Contactor terminals Theory : Other , Electrical Contact Replacement Usage : Spare kit for Siemens Contactor repair and maintenance Size : Other, Standard size as per Siemens Contactor model Mechanical Life : As per usage and quality (varies per application) Contact Load : Other, As per the original contactor specification Supply Terminal : N/A (component part only) Contact Resistance : Very Low (depends on surface condition, usually < 50 m) Dielectiric Strength : N/A (current conducting part) Power Consumption : N/A (component part only) Insulation Resistance : N/A (conductive component)

Send Inquiry

Switch Fuse Unit Price : 800 INR/Piece Minimum Order Quantity : 1 Rated Voltage : 415 V AC Weight : Approx. 500g Dimension (L*W*H) : Standard for 2000 C ACB Product Type : Switch Fuse Unit / Cradle Terminal Support Color : White Working Temperature : 10C to +60C Contact Form : Multipole Protect Feature : Other, Fuse Protection Ambient Temperature : 10C to +60C Contact Material : Copper/Alloy Operate Time : Instantaneous Terminal Type : Other, Cradle Terminal Support Theory : Other , Contact and Disconnection Device Usage : Industrial Electrical Systems Size : Other, For 2000 C ACB Mechanical Life : 10,000 Operations Contact Load : Other, Up to 2000A Supply Terminal : Copper / Brass Contact Resistance : <2 m Dielectiric Strength : 2000V AC for 1 Min Power Consumption : Minimal, Passive Insulation Resistance : 1000 M

Send Inquiry

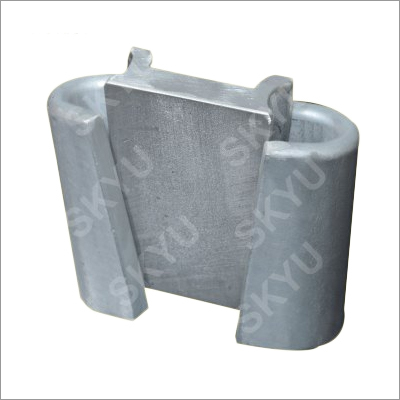

Aluminium C Wedge Clamp Price : 1000 INR/Piece Minimum Order Quantity : 100 Rated Voltage : Up to 33 kV Weight : Approx. 250500 grams (varies by size) Dimension (L*W*H) : Typically 60150 mm (customized as per requirement) Product Type : Aluminium C Wedge Clamp Color : Silver Grey Working Temperature : Up to 100C Contact Form : Wedge Type Protect Feature : Other, Corrosion Resistant Ambient Temperature : 40C to 55C Contact Material : High Strength Aluminium Alloy Operate Time : Instantaneous on application Terminal Type : Other, Wedge Clamp Theory : Other , Mechanical clamping for secure conductor hold Usage : Used for overhead power transmission line to fix the conductor to the strain tower Size : Other, Standard and customized sizes available Mechanical Life : 10 years Contact Load : Other, Up to 3 Tons Supply Terminal : Boltless Contact Resistance : < 15 micro ohm
